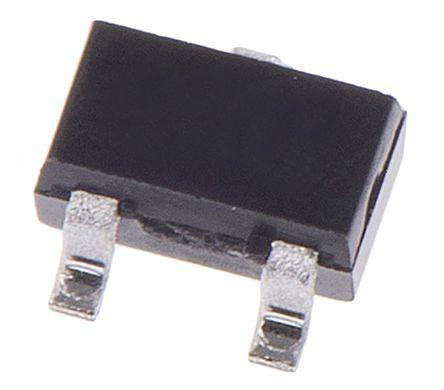

2N7002W-7-F

Type

Case/Package

Contact Plating

Continuous Drain Current (ID)

Current Rating

Drain to Source Breakdown Voltage

Drain to Source Resistance

Drain to Source Voltage (Vdss)

Dual Supply Voltage

Element Configuration

Gate to Source Voltage (Vgs)

Height

Input Capacitance

Lead Free

Length

Max Junction Temperature (Tj)

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Nominal Vgs

Number of Channels

Number of Elements

Number of Pins

Packaging

Power Dissipation

Radiation Hardening

Rds On Max

REACH SVHC

Resistance

RoHS

Schedule B

Termination

Threshold Voltage

Turn-Off Delay Time

Turn-On Delay Time

Voltage Rating (DC)

Weight

Width

Description

SOT-323

Tin

115 mA

115 mA

70 V

2.6 Ω

60 V

60 V

Single

20 V

1 mm

50 pF

Lead Free

2.2 mm

150 °C

150 °C

200 mW

-55 °C

Surface Mount

2 V

1

1

3

Cut Tape

200 mW

No

7.5 Ω

No SVHC

7.5 Ω

Compliant

8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080

SMD/SMT

2 V

11 ns

7 ns

60 V

6.010099 mg

1.35 mm
