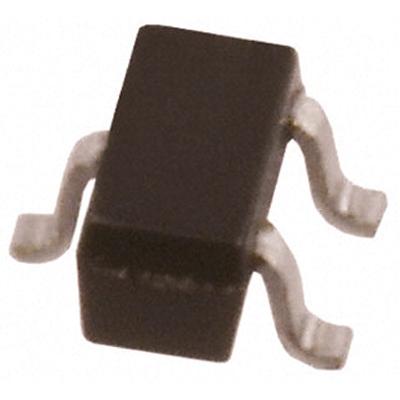

2N7002T-7-F
Manufacturer
Diodes Inc.
Description
N-Channel 60 V 7.5 Ohm Enhancement Mode Transistor SOT-523
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Number of Terminals
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Weight
Width
Description
SOT-523
Tin
115 mA
115 mA
60 V
4.4 Ω
60 V
Single
20 V
750 µm
50 pF
Lead Free
1.6 mm
150 °C
150 mW
60 V
-55 °C
Surface Mount
2 V
1
1
3
3
Cut Tape
150 mW
No
7.5 Ω
No SVHC
7.5 Ω
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
2 V
11 ns
7 ns
60 V
2.012816 mg
800 µm
In Stock
Quantity
MOQ : 6
Per Unit Price
₹18.67
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
