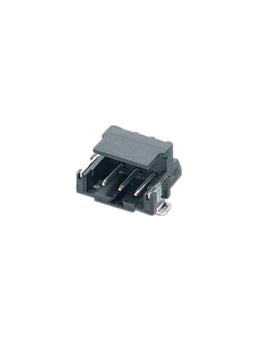

292173-6
Manufacturer
TE Connectivity
Description
Conn Shrouded Header (4 Sides) HDR 6 POS 2mm Solder RA Side Entry SMD Tape and Box
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Contact Shape
Contact Style
Depth
ELV
Flammability Rating
Gender
Height
Housing Color
Housing Material
Length
Lifecycle Status
Manufacturer Lifecycle Status
Mating Post Length
Mating Retention
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
Packaging
PCB Mount Alignment
PCB Mounting Orientation
PCB Mount Retention
PCB Thickness
Pitch
Plating
Plating Thickness
Radiation Hardening
REACH SVHC
RoHS
Sealable
Shape
Termination
Voltage Rating
Width
Wire/Cable Gauge
Wire/Cable Type
Description
CSA
Black
Wire-to-Board
Header, Pin
4 A
Male
Brass
4.191 mm
Tin
20 mΩ
Round
Pin
7.45 mm
Compliant
UL94 V-0
Male
5.7912 mm
Black
Nylon
13.7922 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
4.2 mm
Without
105 °C
125 V
125.125 kV
-40 °C
Surface Mount
6
6
1
125 V
Right Angle
Cut Tape (CT)
With
Right Angle
With
800 µm
2 mm
Tin
2 µm
No
Unknown
Compliant
No
Rectangular
SMD/SMT
125 V
8.9916 mm
22 AWG
Discrete
In Stock
Quantity
MOQ : 1
Per Unit Price
₹136.05
Total Price
₹136.05
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹136.05
₹136.05
10
₹111.24
₹1112.39
25
₹111.27
₹2781.86
50
₹111.24
₹5561.95
100
₹90.62
₹9061.84
500
₹78.56
₹39281.30
1000
₹73.88
₹73881.85
