26-48-1036

Manufacturer

Molex

Description

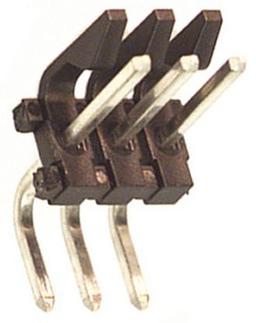

KK 396 Breakaway Header, Right-Angle with Friction Lock, 3 Circuits, Tin (Sn) Plating

Datasheet

download datasheetDownload

Product Attributes

Type

Approvals

Color

Contact Material

Contact Plating

Contact Resistance

Country of Origin

Current Rating

Flammability Rating

Gender

Glow Wire Compliant

Housing Color

Housing Material

Insulation Resistance

Lead Free

Lead Pitch

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Min Operating Temperature

Mount

Number of Circuits

Number of Contacts

Number of Positions

Number of Rows

Orientation

Packaging

Pitch

Plating

Radiation Hardening

RoHS

Schedule B

Termination

Voltage Rating

Voltage Rating (DC)

Description

CSA, TUV, UL

Black

Brass

Tin

6 mΩ

US

7 A

UL94 V-0

Male

Non-compliant

Black

Polyester

500 GΩ

Lead Free

3.96 mm

3 m

Production (Last Updated: 2 years ago)

ACTIVE (Last Updated: 2 years ago)

75 °C

0 °C

Through Hole

3

3

3

1

Right Angle, Vertical

Bulk

3.96 mm

Tin

No

Compliant

8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040

Solder

250 V

250 V

In Stock

Quantity

MOQ : 2

decrement quantity
increment quantity

Per Unit Price

₹56.02

Total Price

₹112.04

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹112.04

₹112.04

10

₹26.05

₹260.54

25

₹26.04

₹650.89

50

₹26.04

₹1301.79

100

₹21.22

₹2121.63

500

₹18.39

₹9196.11

1000

₹17.29

₹17294.94
