25146NAH
Manufacturer
APEM
Description

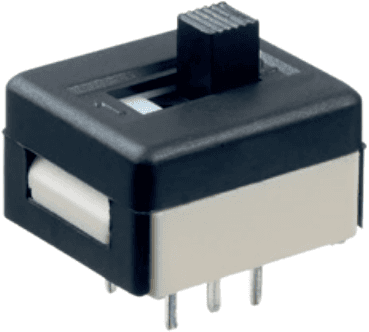

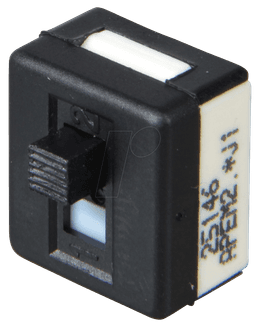

Switch Slide ON ON DPDT Top Slide 1A 30VDC 20000Cycles PC Pins Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Electrical Life
Illumination Type
Insulation Resistance
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Orientation
REACH SVHC
RoHS
Switch Function
Switch Travel
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
2.8 mm
Glass, Glass fibre, Nylon, Polyamide
4 A
Silver
Silver
10 mΩ
1 A
12.5 mm
10 kcycles
Non-Illuminated
1 GΩ
14.1 mm
4 A
85 °C
250 V
30 V
20 kcycles
-40 °C
PCB, Through Hole
Vertical
No SVHC
Compliant
On-On
4 mm
PC Pins
DPDT
125 V
30 V
14 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹536.86
Total Price
₹536.86
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹536.86
₹536.86
10
₹536.86
₹5368.59
25
₹522.73
₹13068.23
50
₹522.73
₹26136.45
100
₹503.81
₹50381.34
500
₹666.61
₹333303.28
1000
₹855.92
₹855920.80
