Manufacturer
Molex
Description

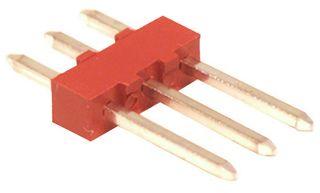

KK 254 Wire-to-Board Header Single Row Vertical 3 Circuits PA Polyamide Nylon Tin (Sn) Plating
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Country of Origin
Current Rating
Flammability Rating
Gender
Glow Wire Compliant
Halogen Free
Hole Diameter
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Pitch
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Plating
Radiation Hardening
REACH SVHC
RoHS
Termination
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Working Voltage
Description
CSA, UL
White
Male
Brass
Tin
20 mΩ
US
4 A
UL94 V-0
Male
Non-compliant
Low Halogen
1.02 mm
White
Nylon
50 GΩ
Lead Free
2.54 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
Nylon
75 °C
-40 °C
Through Hole
3
3
3
3
3
1
Vertical
Bulk
2.54 mm
Tin
No
Unknown
Compliant
Solder
250 V
250 V
250 V
205.987635 mg
250 V
