2199230-3
Manufacturer
TE Connectivity
Description

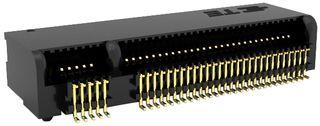

Conn Card Edge SKT 67 POS 0.5mm Solder RA SMD Embossed T/R
Datasheet
DownloadProduct Attributes
Type
Circuit Application
Color
Contact Current Rating
Contact Material
Contact Plating
Current Rating
ELV
Gender
Height
Housing Color
Housing Material
Insulation Material
Insulation Resistance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
Packaging
PCB Mounting Orientation
Pitch
Plating
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Schedule B
Sealable
Termination
Voltage Rating
Width
Description
Power
Black
500 mA
Gold
Gold, Tin
500 mA
Compliant
Female
4.2 mm
Black
Thermoplastic
Thermoplastic
500 MΩ
21.8948 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
80 °C
50 V
-40 °C
Surface Mount
67
67
2
50 V
Right Angle
Tape & Reel
Right Angle
500 µm
Gold
No
Unknown
Compliant
7.55 mm
8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040
No
Solder
50 V
8.7 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹152.23
Total Price
₹152.23
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹152.23
₹152.23
10
₹135.51
₹1355.14
25
₹135.44
₹3386.07
50
₹135.28
₹6764.14
100
₹115.19
₹11518.70
500
₹110.29
₹55145.52
1000
₹96.31
₹96311.03
