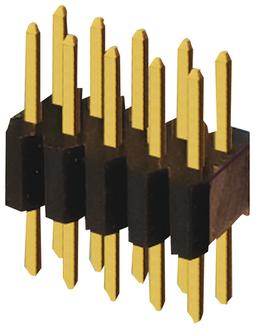

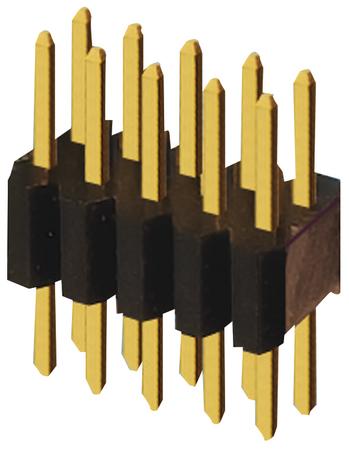

20021111-00010T4LF
Manufacturer
Amphenol ICC / FCI
Description
Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Top Entry Thru-Hole Minitek127 Tube
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Length
Length
Mating Post Length
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Stack Height
Termination
Voltage Rating
Description
Black
Header, Male Pin
Copper
3.048 mm
Gold
30 mΩ
10 A
3.4 mm
Male
Black
Plastic
100 MΩ
Lead Free
2.3 mm
6.35 mm
3.05 mm
85 °C
125 V
-40 °C
Through Hole
10
10
10
2
Straight
1.27 mm
No
No SVHC
Compliant
1.27 mm
2.5 mm
Solder
125 V
