2-1761605-5
Manufacturer
TE Connectivity
Description

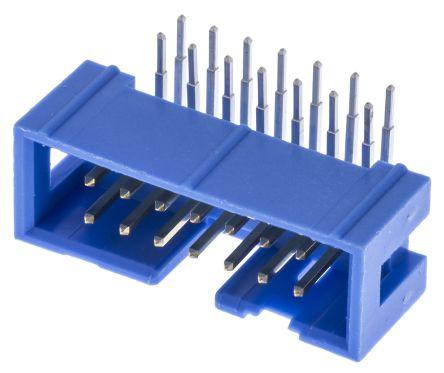

Conn Shrouded Header (4 Sides) HDR 14 POS 2.54mm Solder RA Side Entry Thru-Hole Package
Datasheet
DownloadProduct Attributes
Type
Circuit Application
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Contact Shape
Current Rating
Depth
ELV
Flammability Rating
Gender
Height
Hole Diameter
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Length
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Mating Connector Lock
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Poles
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
PCB Mounting Orientation
PCB Mount Retention
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Description
Signal
Blue
Wire-to-Board
Header, Pin, Plug
1 A
Male
Bronze
6.096 mm
Gold, Tin
20 mΩ
Square
1 A
12.18 mm
Compliant
UL94 V-0
Male
8.89 mm
900 µm
Blue
PBT
5 GΩ
Lead Free
2.6 mm
2.54 mm
25.4 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
Glass, Thermoplastic
Without
105 °C
250 V
-65 °C
Through Hole
14
14
14
2
250 V
Right Angle
Right Angle
Without
2.54 mm
No
No SVHC
Compliant
2.54 mm
Solder, Through Hole
250 V
Product Attributes
Type
Circuit Application
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Contact Shape
Current Rating
Depth
ELV
Flammability Rating
Gender
Height
Hole Diameter
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Length
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Mating Connector Lock
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Poles
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
PCB Mounting Orientation
PCB Mount Retention
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Description
Signal
Blue
Wire-to-Board
Header, Pin, Plug
1 A
Male
Bronze
6.096 mm
Gold, Tin
20 mΩ
Square
1 A
12.18 mm
Compliant
UL94 V-0
Male
8.89 mm
900 µm
Blue
PBT
5 GΩ
Lead Free
2.6 mm
2.54 mm
25.4 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
Glass, Thermoplastic
Without
105 °C
250 V
-65 °C
Through Hole
14
14
14
2
250 V
Right Angle
Right Angle
Without
2.54 mm
No
No SVHC
Compliant
2.54 mm
Solder, Through Hole
250 V
