2-146134-1
Manufacturer
TE Connectivity / AMP
Description

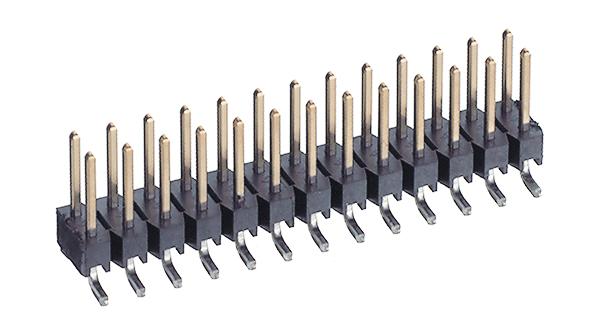

PCB Breakaway Header, 30-Pos, AMPMODU Headers Series | TE Connectivity 2-146134-1
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Contact Style
Current Rating
Depth
ELV
Flammability Rating
Gender
High Speed Serial Data Connector
High Temperature Compatible
High Temperature Housing
Housing Color
Housing Material
Insulation Resistance
Keyed
Lead Length
Length
Lifecycle Status
Mating Post Length
Max Operating Temperature
Min Operating Temperature
Number of Contacts
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
PCB Mounting Orientation
PCB Thickness
Pitch
RoHS
Row Spacing
Termination
Description
CSA
Black
Header, Pin, Plug
3 A
Male
Bronze
5.842 mm
Tin
Square
Pin
3 A
4.88 mm
Compliant
UL94 V-0
Male
No
Yes
Yes
Black
Thermoplastic
5 GΩ
No
2.29 mm
37.69 mm
Production (Last Updated: 1 week ago)
5.842 mm
125 °C
-65 °C
30
30
2
30 V
Vertical
Vertical
1.5748 mm
2.54 mm
Compliant
2.54 mm
SMD/SMT
