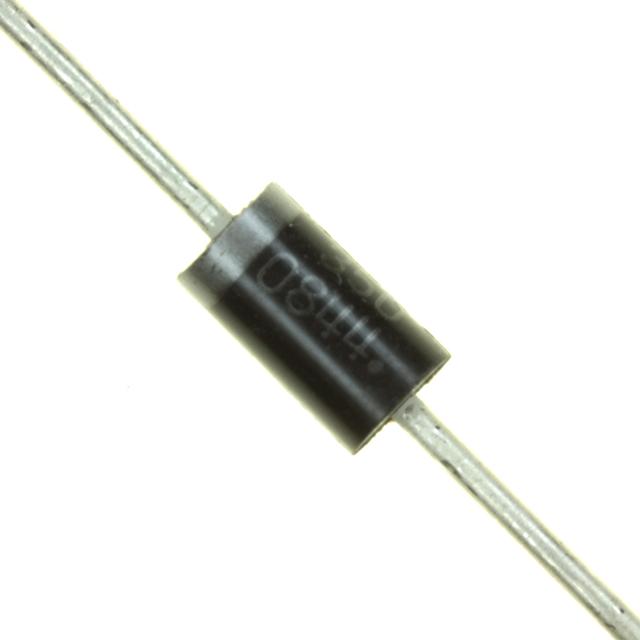

1N5822RLG

Type

Average Rectified Current

Contact Plating

Current Rating

Element Configuration

Forward Current

Forward Voltage

Halogen Free

Height

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Forward Surge Current (Ifsm)

Max Operating Temperature

Max Repetitive Reverse Voltage (Vrrm)

Max Reverse Leakage Current

Max Reverse Voltage (DC)

Max Surge Current

Min Operating Temperature

Number of Pins

Output Current

Packaging

Peak Non-Repetitive Surge Current

Peak Reverse Current

Polarity

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Voltage Rating (DC)

Weight

Width

Description

3 A

Tin

3 A

Single

3 A

525 mV

Halogen Free

5.3 mm

Lead Free

9.5 mm

Production (Last Updated: 3 years ago)

ACTIVE (Last Updated: 3 years ago)

80 A

125 °C

40 V

2 mA

40 V

80 A

-65 °C

2

3 A

Tape and Reel

80 A

2 mA

Standard

No

No SVHC

Compliant

8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080

40 V

4.535924 g

5.3 mm
