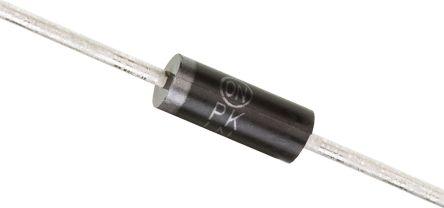

1N5338BRLG
Manufacturer
onsemi
Description
Zener Diode Single 5.1V 5% 1.5Ohm 5000mW 2-Pin Case 017AA-01 T/R / DIODE ZENER 5.1V 5W AXIAL
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Element Configuration
ESD Protection
Forward Voltage
Halogen Free
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Number of Pins
Packaging
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Width
Working Voltage
Zener Current
Zener Voltage
Description
Axial
Tin
Single
Yes
1.2 V
Halogen Free
3.68 mm
1.5 Ω
Lead Free
8.89 mm
Production (Last Updated: 1 year ago)
ACTIVE (Last Updated: 1 year ago)
Plastic
200 °C
5 W
1 µA
-65 °C
0
Cut Tape
1 µA
5 W
5 W
No
No SVHC
Compliant
8541100050
240 mA
5 %
5.1 V
5 %
3.68 mm
5.1 V
930 mA
5.1 V
