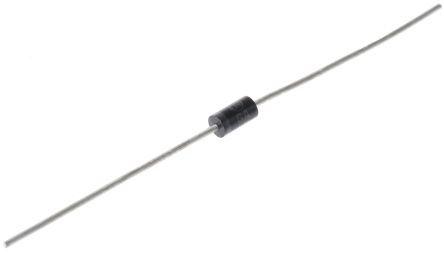

1N4735A
Manufacturer
onsemi
Description
1N4735 Series 1 W 6.2 V 10 uA Through Hole Zener Diode - DO-41
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Case/Package
Contact Plating
Element Configuration
ESD Protection
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
6.2 V
Axial
Tin
Single
No
2.72 mm
2 Ω
Lead Free
5.2 mm
Production (Last Updated: 3 years ago)
ACTIVE (Last Updated: 3 years ago)
Glass
200 °C
200 °C
1 W
10 µA
-65 °C
Through Hole
2
620 mA
Bulk
10 µA
1 W
1 W
No
No SVHC
3 V
Compliant
8541100050
41 mA
5 %
6.2 V
5 %
245 mg
2.7 mm
6.2 V
41 mA
6.2 V
In Stock
Quantity
MOQ : 7
Per Unit Price
₹15.12
Total Price
₹105.81
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.81
₹105.81
10
₹10.49
₹104.93
25
₹10.46
₹261.43
50
₹10.44
₹521.96
100
₹5.22
₹521.96
500
₹4.43
₹2213.03
1000
₹3.51
₹3514.45
