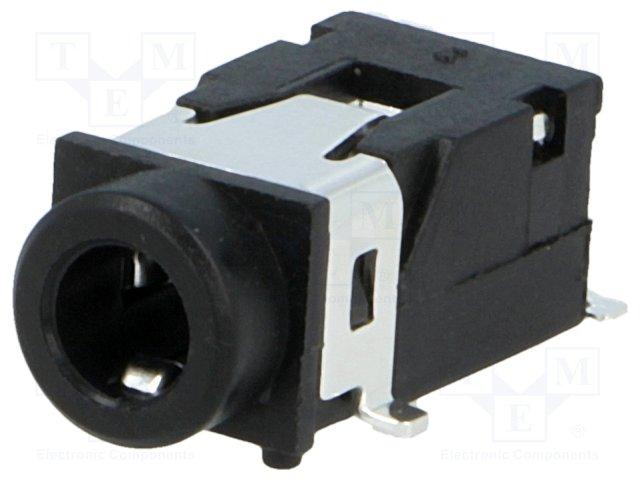

1503 13 VP3
Manufacturer
Lumberg
Description
Conn 3.5MM Stereo Jack F 4 POS Solder RA SMD 4 Terminal 1 Port Reel
Datasheet
DownloadProduct Attributes
Type
Body Material
Case/Package
Color
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Housing Material
Insulation Resistance
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Ports
Number of Terminals
Orientation
Outside Diameter
REACH SVHC
RoHS
Termination
Voltage Rating (AC)
Description
Metal
Metal
Black
Silver
30 mΩ
1 A
15.8 mm
Receptacle
Polybutylene
1 GΩ
7 mm
1 A
70 °C
34 V
-20 °C
PCB, Through Hole
4
1
4
Right Angle
3.5 mm
No SVHC
Compliant
Solder
34 V
Product Attributes
Type
Body Material
Case/Package
Color
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Housing Material
Insulation Resistance
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Ports
Number of Terminals
Orientation
Outside Diameter
REACH SVHC
RoHS
Termination
Voltage Rating (AC)
Description
Metal
Metal
Black
Silver
30 mΩ
1 A
15.8 mm
Receptacle
Polybutylene
1 GΩ
7 mm
1 A
70 °C
34 V
-20 °C
PCB, Through Hole
4
1
4
Right Angle
3.5 mm
No SVHC
Compliant
Solder
34 V
