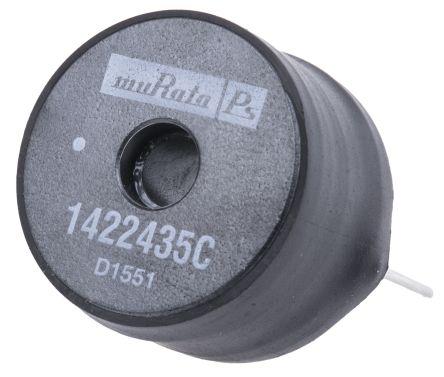

1422435C
Manufacturer
Murata Power Solutions
Description
Inductor General Purpose Bobbin Core 220uH 10% 1KHz 22Q-Factor 3.5A 96mOhm DCR RD
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead/Base Style
Lead Diameter
Lead Free
Lead Length
Lead Pitch
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Orientation
Packaging
Q Factor
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Type
Width
Description
Radial
Wirewound
3.5 A
3.5 A
96 mΩ
25.9 mm
14 mm
15.494 mm
220 µH
10 %
Radial
850 µm
Lead Free
10 mm
23.5 mm
27.6 mm
Production (Last Updated: 7 months ago)
3.5 A
3.5 A
85 °C
Not
-40 °C
Radial, Through Hole
1
2
2
Vertical
Bulk
22
No
Yes
3.5 A
Compliant
3.5 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
2.8 MHz
No
Radial
1 kHz
10 %
General Purpose
24.4 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹265.87
Total Price
₹265.87
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹265.87
₹265.87
10
₹262.40
₹2624.03
25
₹260.25
₹6506.28
50
₹253.85
₹12692.44
100
₹241.04
₹24104.43
500
₹209.05
₹104523.68
