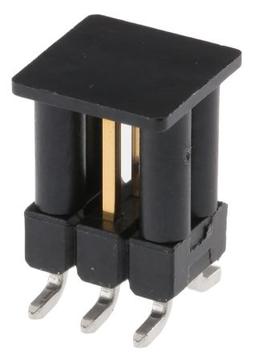

1241050-3
Manufacturer
TE Connectivity
Description
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST SMD Automotive T/R
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Contact Style
Current Rating
ELV
Gender
Height
High Speed Serial Data Connector
High Temperature Housing
Housing Color
Housing Material
Insulation Resistance
Keyed
Lead Free
Lead Pitch
Lifecycle Status
Manufacturer Lifecycle Status
Mating Post Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
PCB Mounting Orientation
Pitch
Plating Thickness
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating (AC)
Voltage Rating (DC)
Working Voltage
Description
Black
Header, Pin, Plug
Male
CuZn
5.7912 mm
Gold
Square
Pin
3 A
Compliant
Male
11.015 mm
No
No
Black
Polycyclohexylenedimethylene
5 GΩ
No
Lead Free
2.54 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
5.8 mm
105 °C
-65 °C
Surface Mount
6
6
2
Vertical
Tape & Reel (TR)
Vertical
2.54 mm
800 nm
No
No SVHC
Compliant
2.54 mm
SMD/SMT
250 V
250 V
250 V
