103906-2
Manufacturer
TE Connectivity
Description

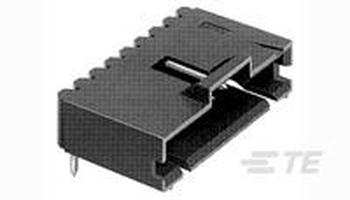

Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder RA Side Entry Thru-Hole Tube
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector Type
Contact Current Rating
Contact Finish Thickness - Mating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Contact Shape
Contact Style
Current Rating
Depth
Flammability Rating
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Mating Post Length
Mating Retention
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
PCB Mount Alignment
PCB Mounting Orientation
PCB Mount Retention
Pitch
Plating
Plating Thickness
Radiation Hardening
RoHS
Row Spacing
Tail Length
Termination
Description
CSA
Black
Header, Pin, Plug
3 A
762 nm
Male
Brass
5.842 mm
Gold
15 mΩ
Square
Pin
3 A
13.59 mm
UL94 V-0
Male
13.59 mm
Black
Thermoplastic
5 GΩ
Contains Lead
10.16 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
5.842 mm
With
105 °C
-65 °C
Through Hole
3
3
1
Right Angle
Bulk
Without
Right Angle
Without
2.54 mm
Gold
5.08 µm
No
Non-Compliant
2.54 mm
3.3 mm
Crimp, Solder
In Stock
Quantity
MOQ : 1
Per Unit Price
₹111.15
Total Price
₹111.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.15
₹111.15
10
₹93.81
₹938.11
25
₹93.86
₹2346.60
50
₹93.85
₹4692.31
100
₹93.86
₹9386.40
500
₹93.86
₹46929.31
1000
₹76.79
₹76793.09
