1-1825027-1
Manufacturer
TE Connectivity
Description

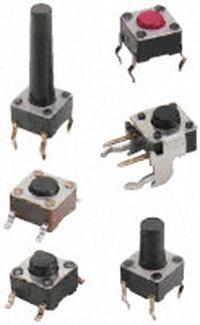

Switch Push Button OFF (ON) SPST Round Button 0.05A 24VDC Momentary Contact PC Pins Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Color
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Electrical Life
ELV
Height
Illumination Color
Illumination Type
Insulation Resistance
Lead Free
Length
Life (Cycles)
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Orientation
Radiation Hardening
REACH SVHC
RoHS
Switch Function
Switch Travel
Termination
Throw Configuration
Type
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
5.74 mm
PBT
Black
50 mA
Copper
Silver
100 mΩ
50 mA
12.36 mm
100 kcycles
Compliant
7.3 mm
Black
Illuminated, Non-Illuminated
100 MΩ
Lead Free
7.11 mm
100 kcycles
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
50 mA
85 °C
24 V
100 kcycles
-35 °C
Through Hole
2
1.6 N
Straight
No
No SVHC
Compliant
Off-Mom
250 µm
PC Pins, Solder
SPST
Switch
24 V
24 V
6 mm
