1-1478979-0
Manufacturer
TE Connectivity
Description

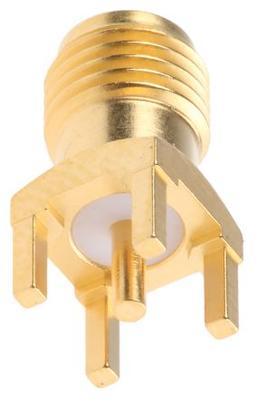

Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel Over Copper Individual
Datasheet
DownloadProduct Attributes
Type
Body Material
Body Plating
Case/Package
Connector Type
Contact Material
Contact Plating
Contact Resistance
Depth
Dielectric Material
ELV
Fastening Type
Frequency
Gender
Height
Impedance
Insulation Material
Insulation Resistance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Frequency
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Orientation
Outside Diameter
PCB Mounting Orientation
Plating
Polarity
Radiation Hardening
REACH SVHC
RoHS
Sealable
Tail Length
Termination
Voltage Rating (AC)
Wire/Cable Type
Description
Stainless Steel
Gold
SMA
SMA
Copper
Gold
3 mΩ
6.35 mm
PTFE
Compliant
Threaded
18 GHz
Female
9.5 mm
50 Ω
Polytetrafluoroethylene
500 MΩ
13.0048 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
Stainless Steel
18 GHz
165 °C
-65 °C
PCB, Through Hole
1
1
Vertical
6.35 mm
Vertical
Gold
Normal, Standard
No
Unknown
Compliant
No
3.5 mm
Solder
500 V
Coaxial
