AP2112K-3.3TRG1
Manufacturer
Diodes Inc.
Description

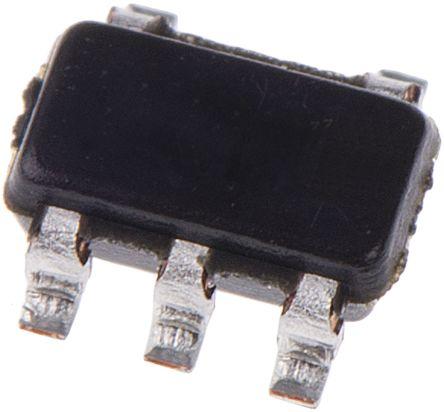

AP2112 Series 0.6 A 3.3 V Fixed Output SMT LDO Linear Regulator - SOT23-5
Datasheet
DownloadProduct Attributes
Type
Accuracy
Ambient Temperature Range High
Case/Package
Dropout Voltage
Height
Lead Free
Length
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Channels
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Packaging
Polarity
Quiescent Current
RoHS
Schedule B
Width
Description
1.5 %
85 °C
SOT-23-5
250 mV
1.3 mm
Lead Free
3.1 mm
6 V
150 °C
85 °C
600 mA
6 V
2.5 V
-40 °C
2.5 V
Surface Mount
55 µA
1
1
5
1
600 mA
Fixed
3.3 V
Digi-Reel®
Positive
55 µA
Compliant
8542390000
1.7 mm
