At Lioncircuits we recommend our customers to provide us with Gerber files in RS-274X format for Manufacturing. The Gerber format is an open ASCII vector format for PCB designs. It is the very first input which a printed board manufacturer needs.
Gerber files can be extracted from your CAD Software tools.
Please follow the below steps to extract Gerber files from the EasyEDA tool:

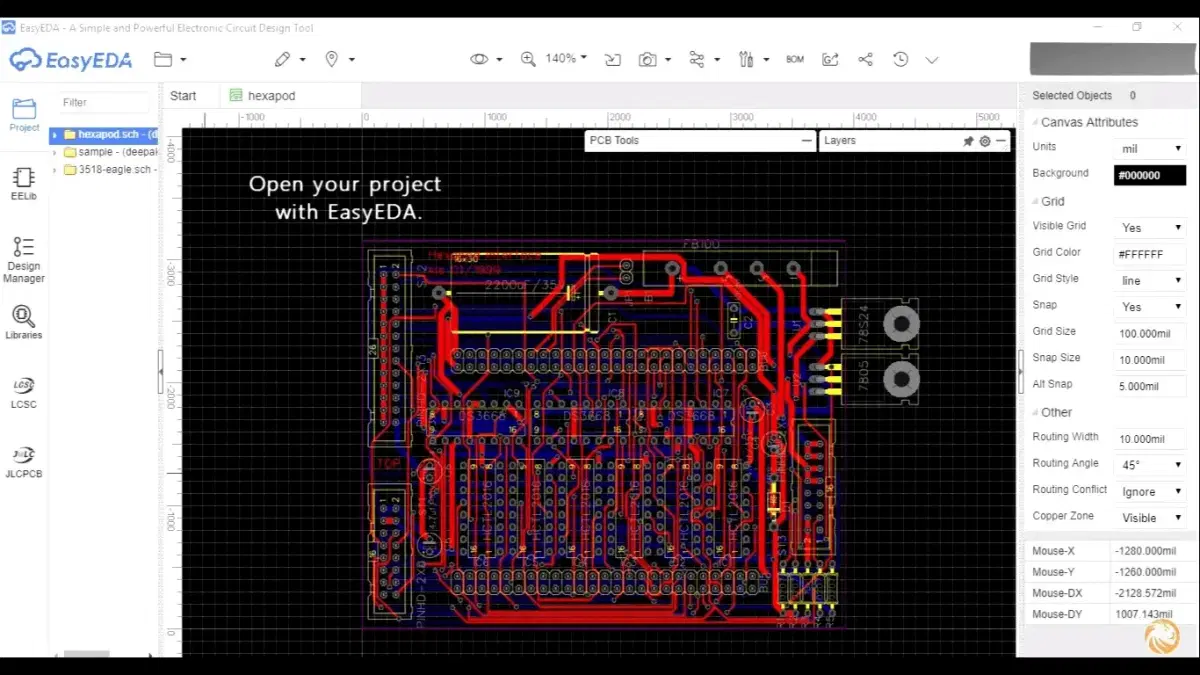

1) Open your project with EasyADA.

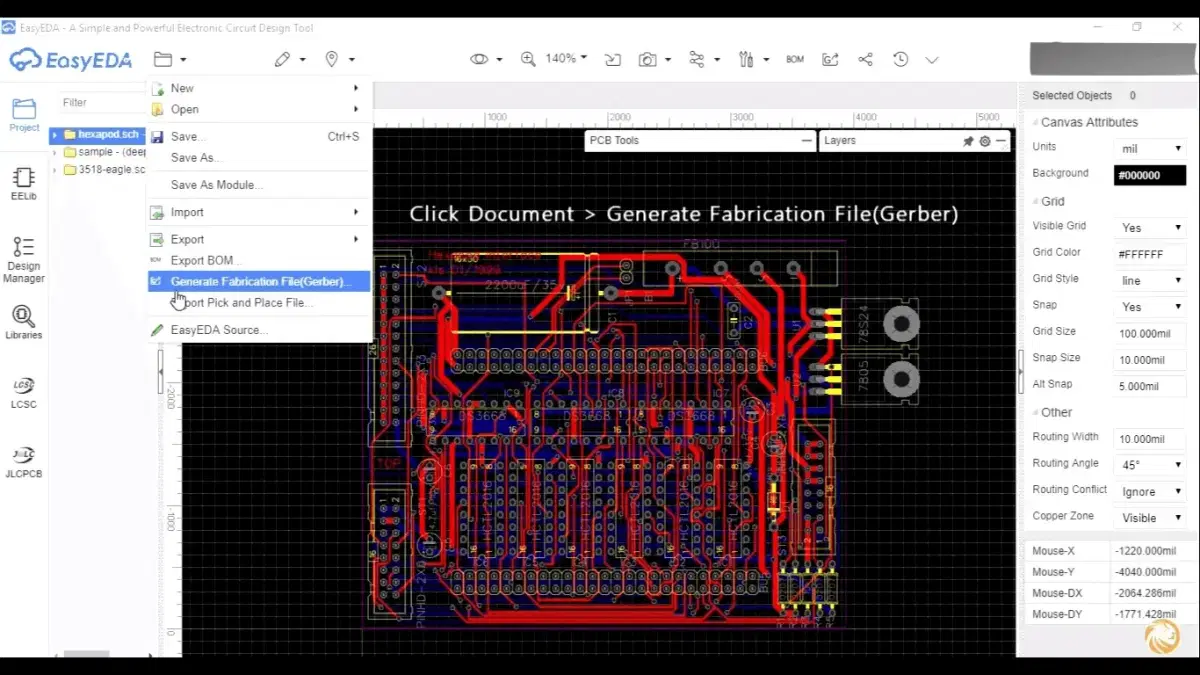

2) Click on Document, then select "Generate Fabrication File(Gerber)"

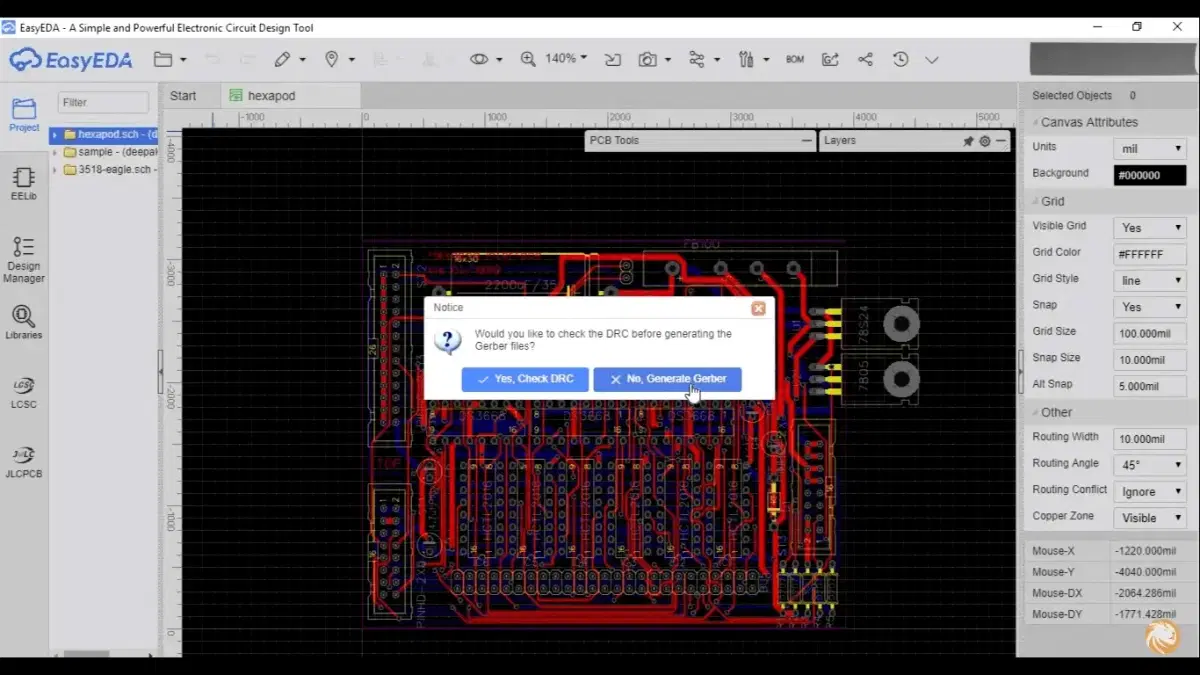

3) Click on the "No, Generate Gerber" option when a window pops up.

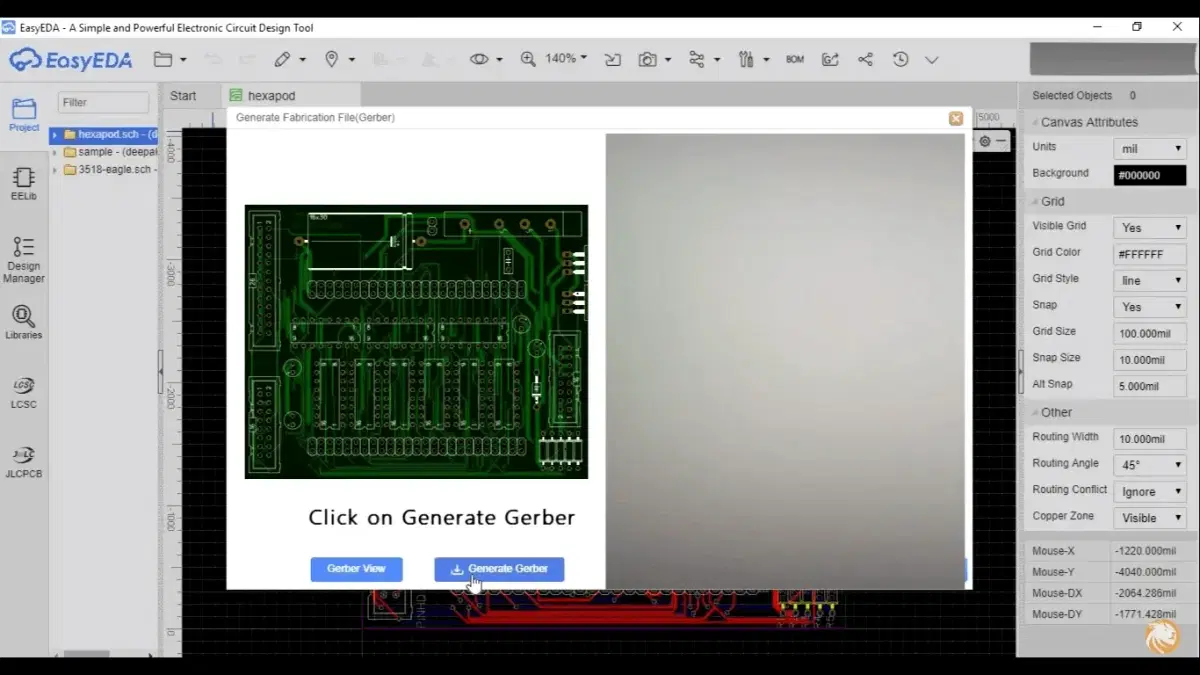

4) Click on Generate Gerber.

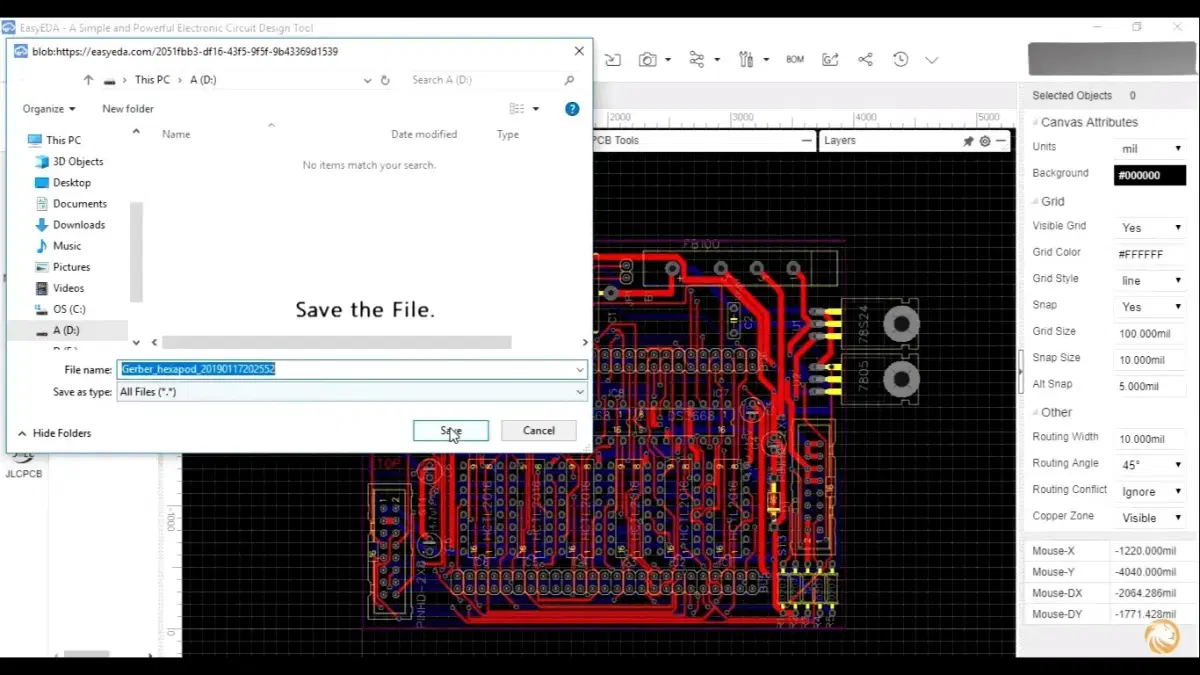

5) Save the file at your desired location with a desired file name and click on "Save" .

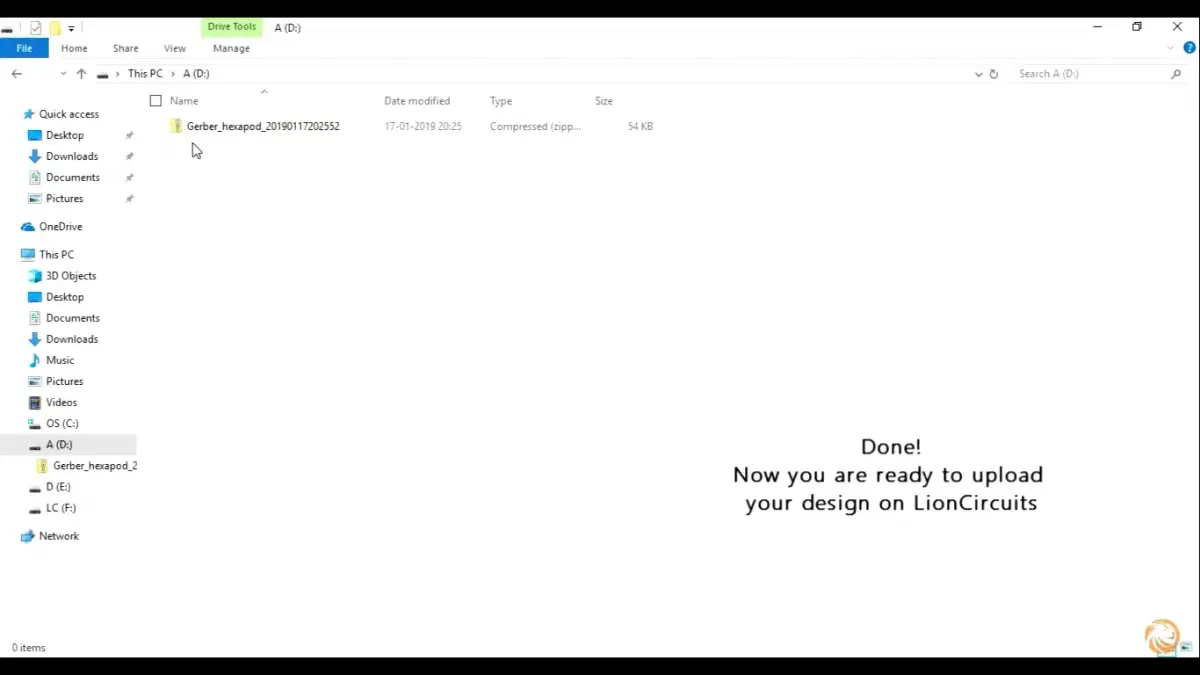

6) It will generate a .Zip file and you can directly upload this file on our platform "LionCircuits" while placing an order.
